Scan View

Scan View is a piece of software I developed for the inspection department of a large producer of cast parts. Scan View takes large high resolution point data taken from a machine that uses a fine probe to scan a surface for defects. Electrical voltage values are translated into a surface map showing surface geometry allowing for the easy identification of faults and defects.

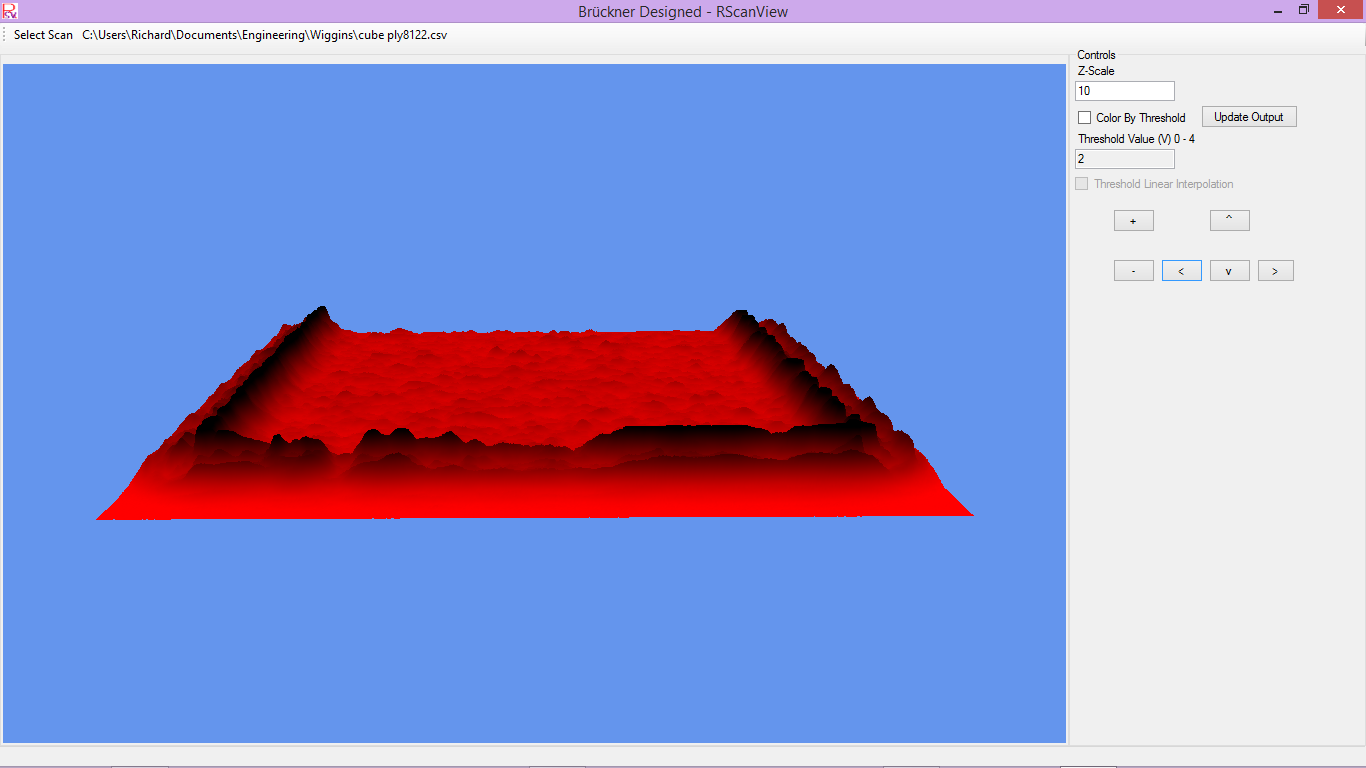

This screenshot shows the 3D surface map of a scanned example block of plywood with a square indentation. Height values are inverted for clarity.
